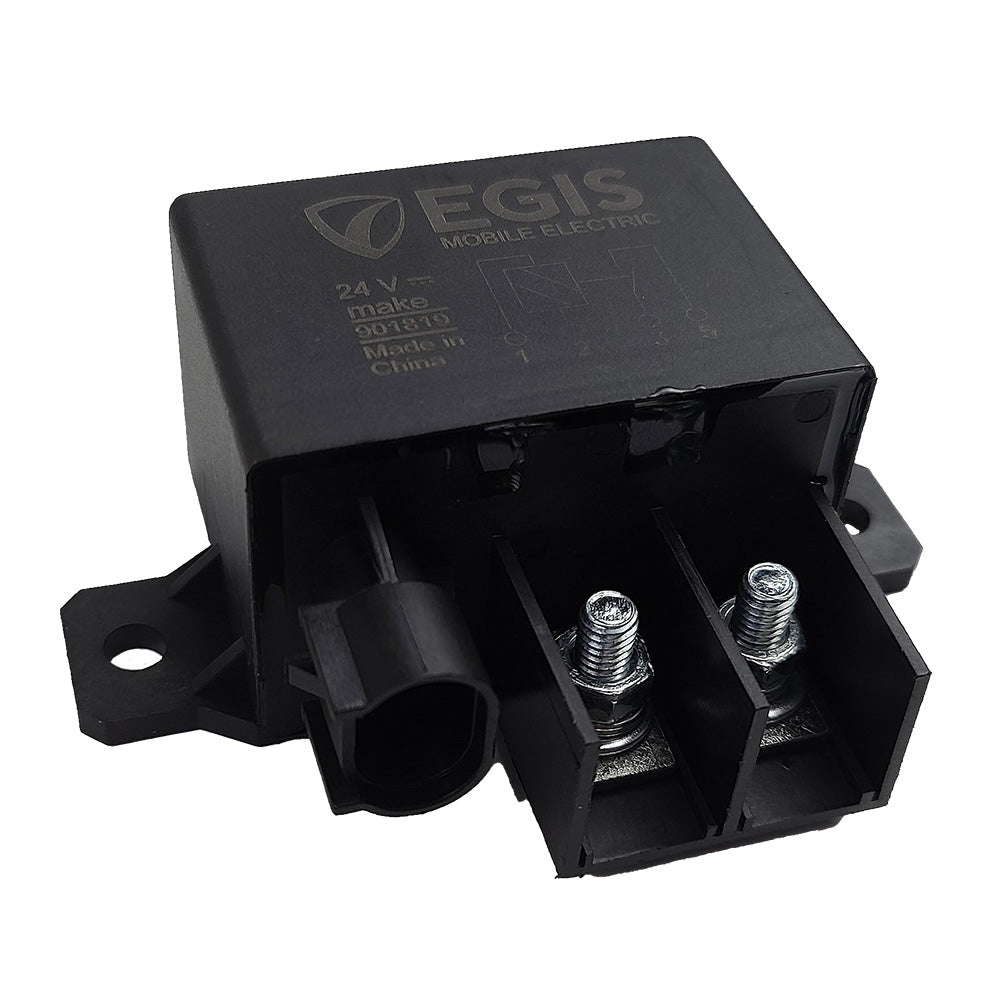

Egis Relay 24V, 150A w/Resistor [901819]

Relay 24V, 150A with Resistor This is a 24V automotive-rated relay/industry standard drop-in replacement for Tyco/Amp. The relay switch carries high-amp electrical currents in high ambient temperatures/wet environments. Applications: Resistor circuit protection ensures flyback voltage does not affect control signal circuitry. A great option for sensitive electrical systems. High intermittent amp rating of 300 amps for up to 3 seconds, making this relay great for temporary high-equipment start-up amp draw applications. Automotive-grade connectors ensure moisture and dust intrusion are kept from the control circuitry. The high-temperature rating of 125C/257F makes this a great relay for high-temperature installation environments like engine bays and other low-ventilation spaces. Features: Bullet-proof Construction - Robust automotive grade relay with IP54 ingress protection and reinforced mounting tabs ensure secure mounting Dual mounting holes on either side for easy mounting with ¼-20”/M6 1.25 bolts or screws up to #14 screw Incorporate the highest quality materials for superior performance and have a high 100,000 electrical switching cycle capacity Enhanced vibration and shock protection ensures enhanced reliability, a long service life, and the operational readiness of the electrical system Specifications: Intermittent Current @ 3 SEC (Amps): 300 Ambient Temp. Rating (Low/High) (Celsius): -40/125 C Max Continuous Current (Amps): 180 @23 degrees C Electrical Endurance Rating (Cycles): 1,000,000 On State Current Draw @ 24 VDC: 163 mA Operating Voltage Range: 17.6-32VDC Focal Features: Sealed Housing IP67-rated housing keeps out moisture and ensures long-term reliability. Reinforced Mounting Robust mounting tabs with strengthening gussets ensure the relay stays...

• Ships from Mutiny Marine and Outdoors LLC
• Confirm fitment, size, and compatibility before purchase
