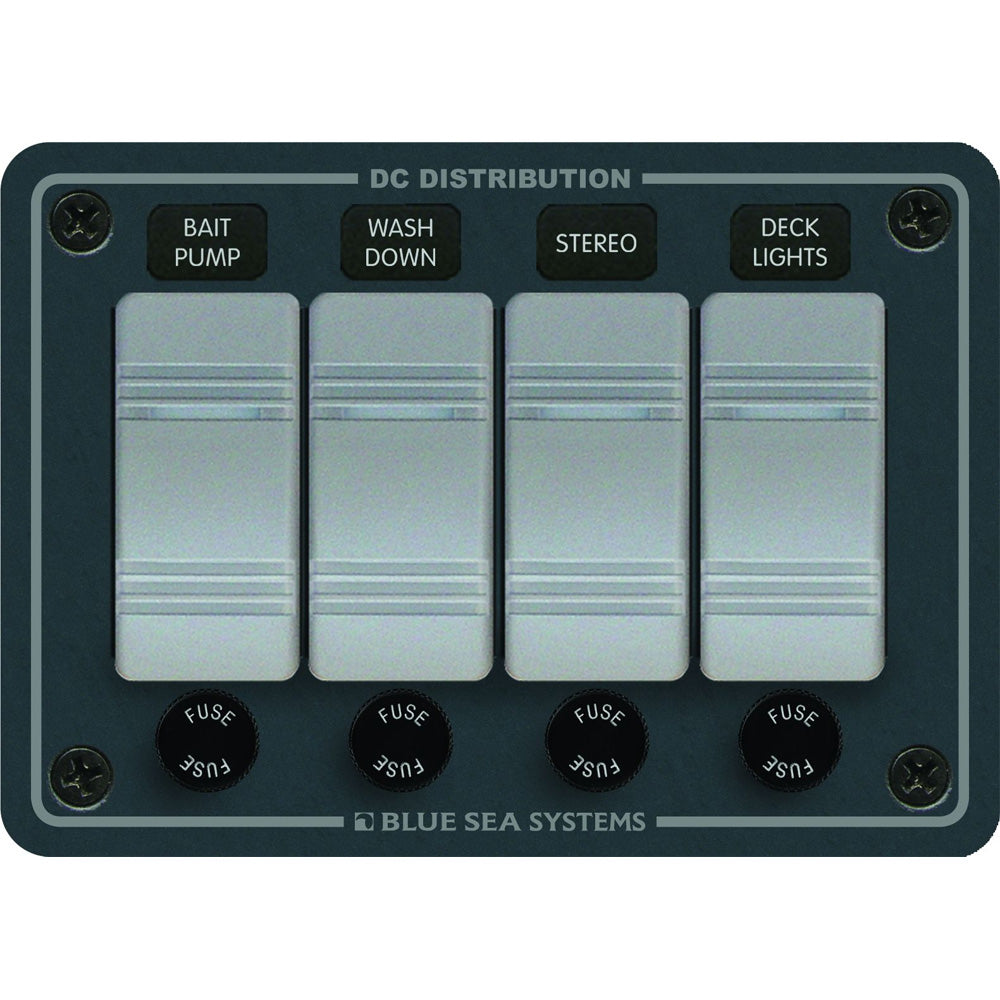

Blue Sea 8262 Waterproof Panel 4 Position - Slate Grey [8262]

8262 Waterproof Panel 4 Position - Slate Grey Features: Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions Designed for flybridge and open cockpit applications ON-OFF Contura Switches ON indicating LEDs embedded in switches Watertight mounting gasket included Countersunk mounting holes throughout Two-part polyurethane slate gray finish Industry standard height and width Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion Completely wired and ready to install Specification s: Weatherproof: Water Resistant Positions: 4 Nominal Voltage: 12v / 24v Panel Cumulative Rating: 45A Switch Rating: 20A @ 12v DC / 15A @ 24v DC Height: 3.75" Width: 5.25" Depth: 3" Included: (4) 5021 Panel Mount AGC/MDL Fuse Holder (1) 8214 Black 60 Label Set (4) 8230 Contura Switch SPST Gray - Off-On WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov . Specifications: Waterproof: Resistant AC/DC: DC Max Breaker Quantity: 4 Voltage: 12/24v Box Dimensions: 5"H x 7"W x 9"L WT: 0.8 lbs UPC: 632085082628 Owner's Manual (pdf)

• Ships from Mutiny Marine and Outdoors LLC
• Confirm fitment, size, and compatibility before purchase
