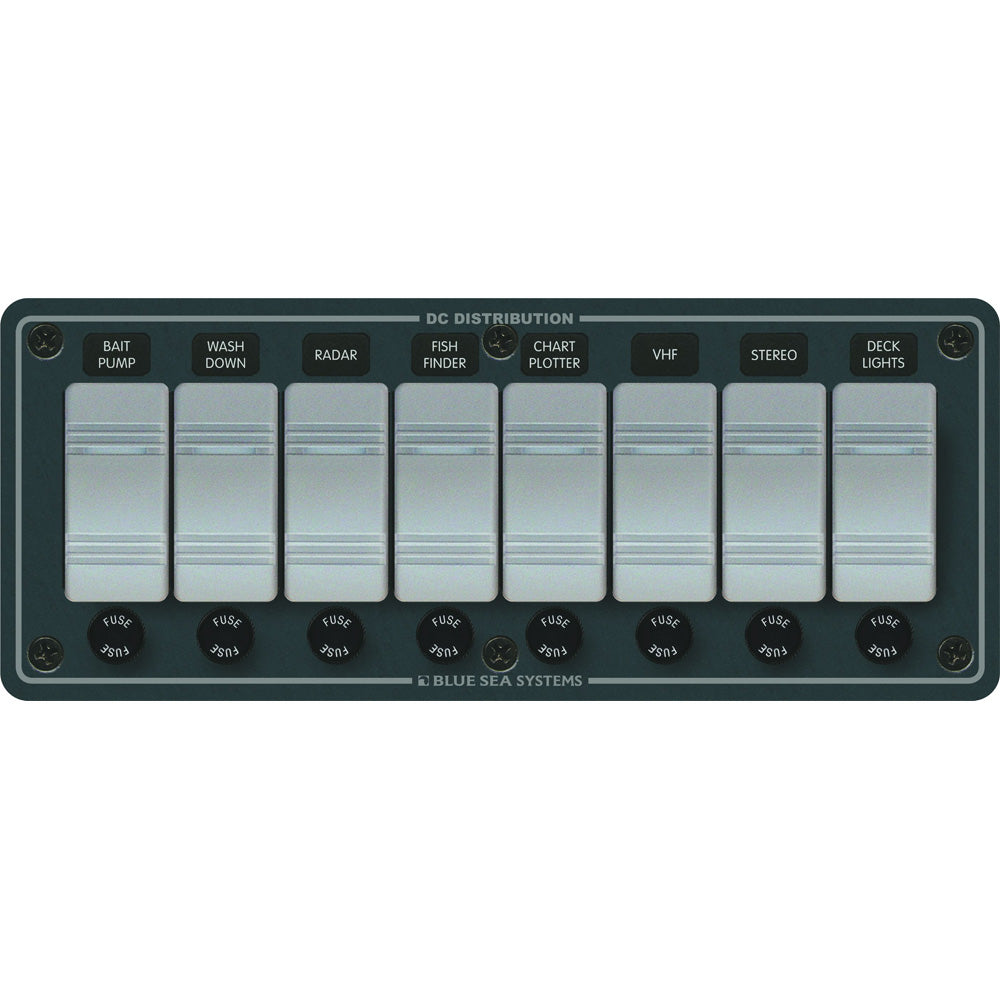

Blue Sea 8261 Waterproof Panel 8 Position - Slate Grey [8261]

8261 Waterproof Panel 8 Position - Slate Grey Features: Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions Designed for flybridge and open cockpit applications ON-OFF Contura Switches ON indicating LEDs embedded in switches Watertight mounting gasket included Countersunk mounting holes throughout Two-part polyurethane slate gray finish Industry standard height and width Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion Completely wired and ready to install Specifications: Weatherproof: Water Resistant Positions: 8 Nominal Voltage: 12v / 24v Panel Cumulative Rating: 90A Switch Rating: 20A @ 12v DC / 15A @ 24v DC Height: 3.75" Width: 9.37" Depth: 3" Included: (8) 5021 Panel Mount AGC/MDL Fuse Holder (1) 8214 Black 60 Label Set (8) 8230 Contura Switch SPST Gray - Off-On WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov . Specifications: Waterproof: Resistant AC/DC: DC Max Breaker Quantity: 8 Voltage: 12/24v Box Dimensions: 7"H x 10"W x 10"L WT: 5.6 lbs UPC: 632085082611 Owner's Manual (pdf)

• Ships from Mutiny Marine and Outdoors LLC
• Confirm fitment, size, and compatibility before purchase
