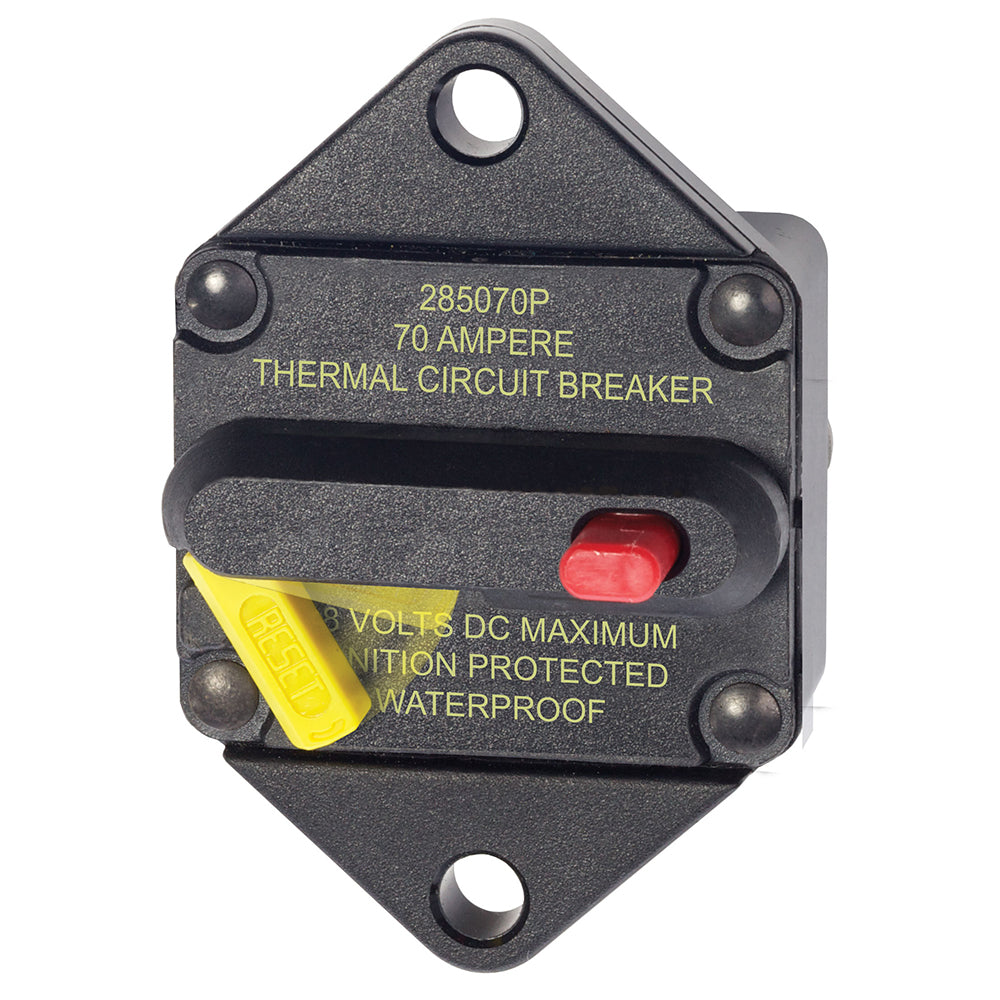

Blue Sea 7085 70 Amp Circuit Breaker Panel Mount 285 Series [7085]

285-Series Thermal Circuit Breaker Panel Mount - 70A Part#7085 Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements Weather Resistant Combines switching and circuit breaker function into one unit "Trip Free" - cannot be held closed after trip * Do not use for direct control of high inrush loads such as motor starting. Specifications Interrupt Rating 3,000A @ 48V DC* Maximum Voltage Rating 48 Volts DC Operating Temperature Range -40°C to 85°C Circuit Breaker Type Thermally Responsive Bi-metal blade Circuit Breaker Class Type III - Switchable / Manual Reset - Trip Free Terminal Stud Size M6 (accepts 1/4" Ring Terminal) Terminal Stud Torque 50 in-lb Mounting Holes Accept 1/4" (M6) screw Weight Lb (Kg) 0.33 lb (0.15 kg) * AIC ratings achieved using SAE J1625 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov . Specifications: Amperage: 70a Box Dimensions: 2"H x 5"W x 9"L WT: 0.3 lbs UPC: 632085070854 Brochure (pdf)

• Ships from Mutiny Marine and Outdoors LLC
• Confirm fitment, size, and compatibility before purchase
