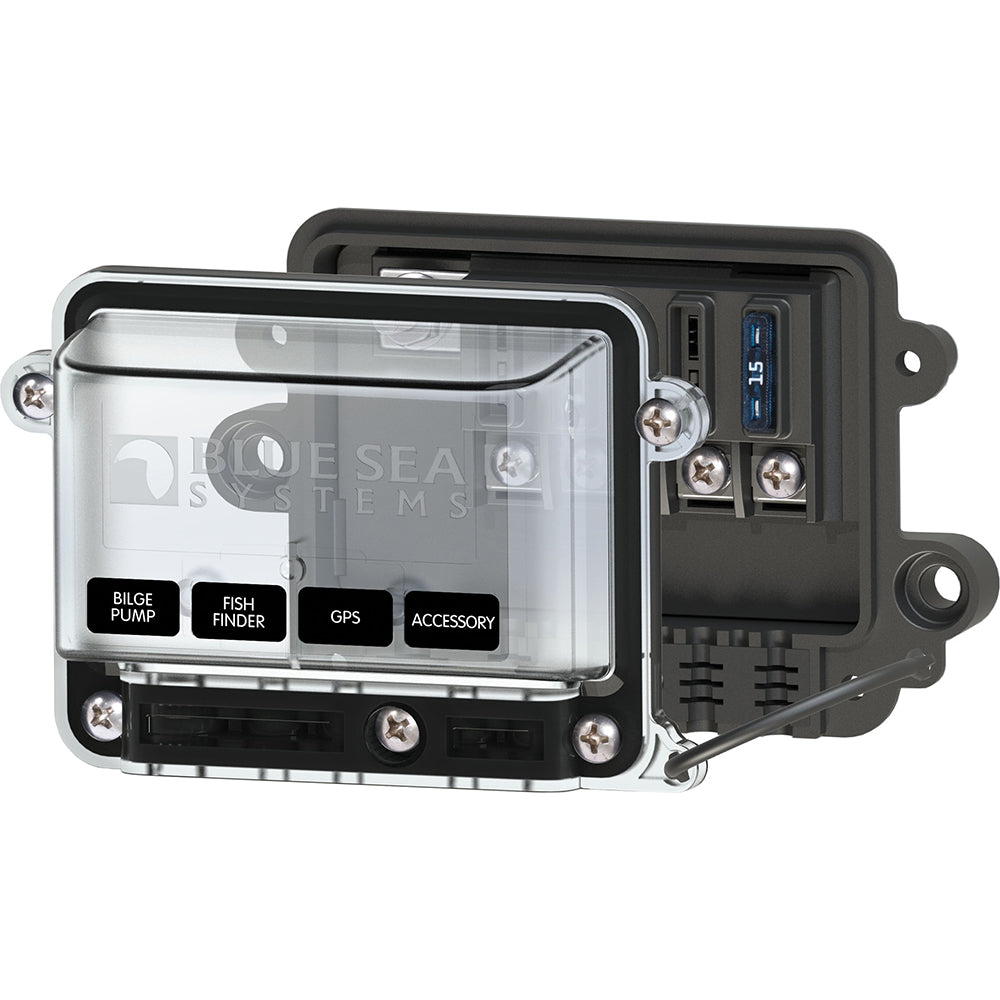

Blue Sea 5056 ST-Blade Water Resistant Fuse Block w/Cover [5056]

5056 ST-Blade Water Resistant Fuse Block with Cover Provides water-resistant circuit protection for ATO/ATC fuses & circuit breakers in a compact footprint. The single side nesting design allows for wire entry from one side to maximize space. Features: Water-resistant design with standard ring or fork type terminals allows for simple wiring with standard tools Accepts a wide range of wire sizes Includes 3 wire plugs to maintain water resistant rating if less than 4 loads are required Accepts ATO and ATC fast-acting blade fuses Accepts ATO/ATC-Style Low Profile Circuit Breakers Nests with other ST-Blade Water-Resistant Fuse Blocks and Water-Resistant 100A Bus Bars to reduce wire Insulating cover meets ABYC/USCG insulation requirements Tin-plated copper busses and fuse clips Includes four write-on circuit labels Small format standard and custom labels available Spare fuse and fastener storage in cover Specifications: Amperage: 80A per block/25A per circuit Maximum Voltage: 32V DC Bus Material: Tin-Plated Copper C11000 Mounting Holes: Clearance for 1/4" (6mm) screws Screw Terminal Type: #8-32 Screws with captive star lock washer Wire Size: (1) 8 AWG to 4 AWG - Input/(5) 16 AWG to 10 AWG - Load WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov . Specifications: Fuse Type: ATO/ATC Type: Fuse Blocks Box Dimensions: 3"H x 8"W x 8"L WT: 0.65 lbs UPC: 632085050566
