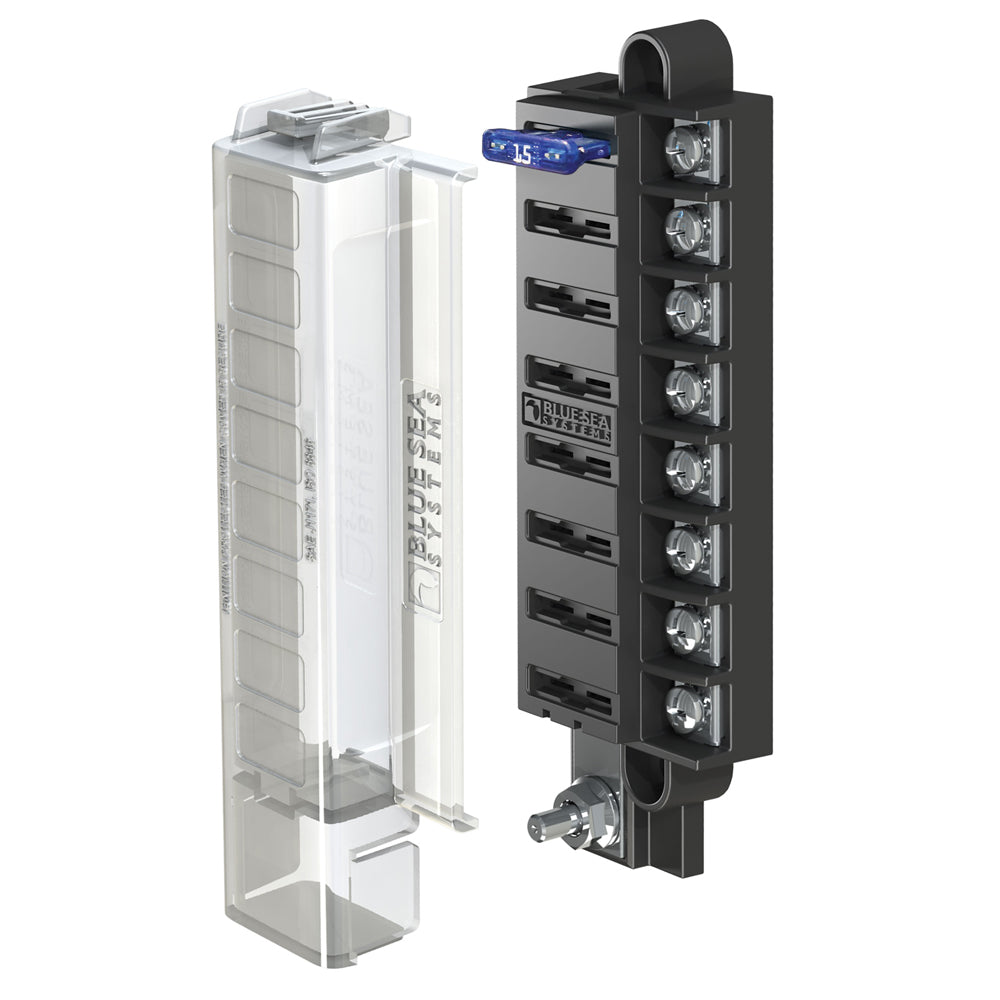

Blue Sea 5046 ST Blade Compact Fuse Blocks - 8 Circuits w/Cover [5046]

ST Blade Compact Fuse Blocks - 8 Circuits w/Cover Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space. Compact common source fuse block Accepts ATO® and ATC® fast acting blade fuses Single side entry wiring Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment Insulating cover meets ABYC/USCG insulation requirements Tin-plated copper buses and fuse clips Accepts ring or snap fork type terminals Small format standard and custom labels available Specifications Circuits: 8 Maximum Amperage: 100A per block / 30A per circuit Maximum Voltage: 32V DC Mounting: #8 Screw (M4) Screw Terminal Torque: #8-32 Screws with captive star lock washer in-lb (0 Nm) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov . Specifications: Fuse Type: ATO/ATC Type: Fuse Blocks Box Dimensions: 2"H x 3"W x 9"L WT: 0.5 lbs UPC: 632085050467
